99 Silverado Fuse Box Diagram. 2008 Chevy Silverado Fuse Box Diagram Chevrolet Silverado fuse box diagrams change across years, pick the right year of your vehicle: 2022 2021 2020 2019 2018 2017 2016 Diesel 2016 2015 2014 2013 2012 2011 2010 2009 2008 2007 2006 2005 2004 2003 2002 2001 2000 1999 1998 1997 1996 1995 1994 1993 1992 1991 1990 In this article, you will find information about the fuses of the Chevrolet Silverado (GMT800) (models 1999, 2000, 2001, and 2002), including diagrams of the fuse boxes, a list of fuses and relays, their designation, and the location of the fuse blocks within the vehicle
2008 Chevy Silverado Fuse Box Diagram from workshopfixeleanor123.z19.web.core.windows.net

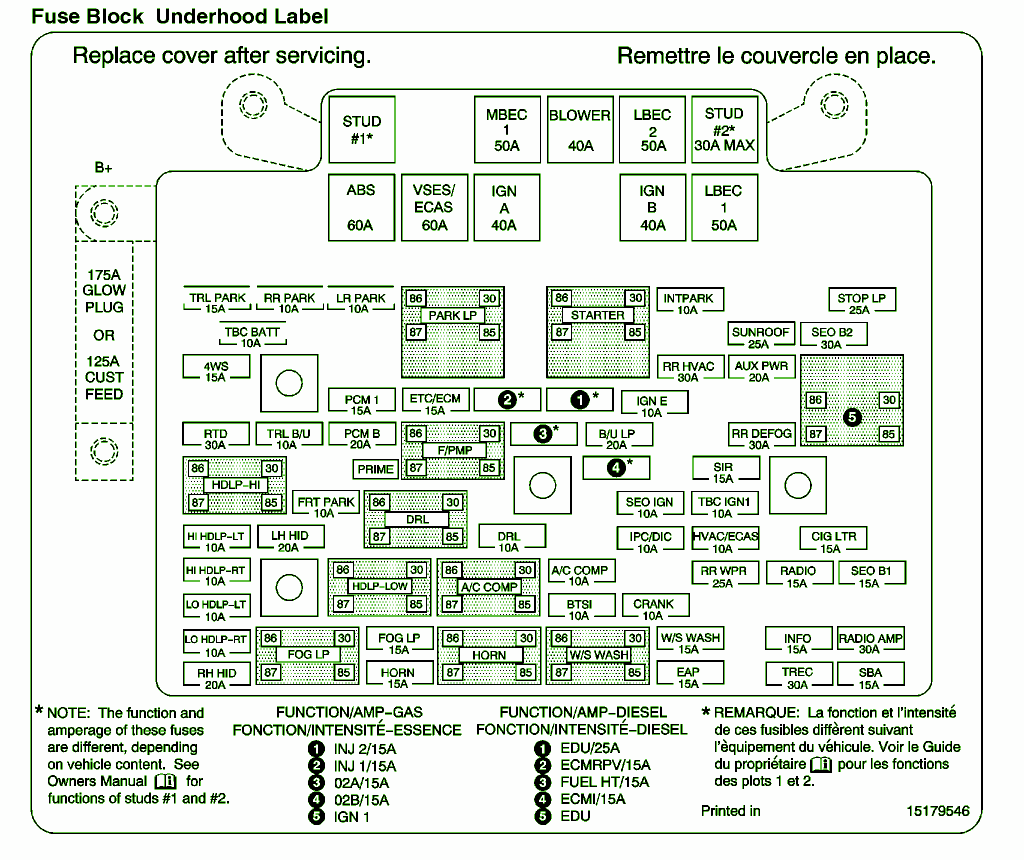

This Silverado 1500 has 3 different fuse boxes: Underhood Electrical Center diagram Center instrument panel relay box: This fuse box is located underneath the instrument panel, to the left of the steering column
2008 Chevy Silverado Fuse Box Diagram
The fuse extractor is mounted to the fuse block access door. Chevrolet Silverado I (1999-2007) fuse box diagrams & schemes Cigarette lighter fuse - (fuse box in engine compartment, fuse 15A - CIG LTR Fuse (2003-2007)
Under Hood Fuse Box Chevy Silverado Removal. Cigarette lighter fuse - (fuse box in engine compartment, fuse 15A - CIG LTR Fuse (2003-2007) diagrams & schemes (fuse box diagrams & layouts, location diagrams, wiring diagrams etc.) may vary depend on the model version.
Fuse box Chevrolet Silverado 19992007. Chevrolet Silverado fuse box diagrams change across years, pick the right year of your vehicle: 2022 2021 2020 2019 2018 2017 2016 Diesel 2016 2015 2014 2013 2012 2011 2010 2009 2008 2007 2006 2005 2004 2003 2002 2001 2000 1999 1998 1997 1996 1995 1994 1993 1992 1991 1990 In this article, you will find information about the fuses of the Chevrolet Silverado (GMT800) (models 1999, 2000, 2001, and 2002), including diagrams of the fuse boxes, a list of fuses and relays, their designation, and the location of the fuse blocks within the vehicle
